| Series Name |
YNU |
| Nominal Cooling Capacity (tonnage) |
1.0 |
| Star Rating |
3 star |
| (Rated) Voltage/Frequency/Phase |
230 V / 50Hz / Single |
| Cooling Capacity (Watt)(Min~Max) |
3510 (1417~3622) |
| Cooling Capacity (BTU/hr) |
11980 |
| Rated Cooling Capacity (50% Load) (Watt) |
1755 |
| Cooling Rated Power Input (Watt) |
1120 |
| Cooling Capacity (BTU/hr)(Min~Max) |
11980 (4835~12360) |
| Cooling Power Input (50% Load) (Watt) |
435 |
| ISEER |
3.85 |
| Electricity Consumed In 1600 Hours. (Units/Year) |
704.42 |
| Nominal Current (Cooling)(Amps) |
4.95 |
| Air Flow Volume (Wet CFM) (High / Medium / Low) |
400/296/203/173 |
| Noise Level Indoor (dB(a)) (High/ Medium/ Low) |
41.7/39/34/31 |
| Moisture Removal (Liters/Hour) |
0.86 |
| Compressor Type |
Inverter Rotary |
| Acoustic Jacket On Compressor |
Yes |
| Refrigerant Quantity(Kg) |
0.38 |
| Ambient Temp (Cooling) (degree C) |
52 |
| Remote |
LCD Remote with Display |
| Night Glow Function On Remote Buttons |
Yes |
| Net IDU(Product) Dimension (mm) |
845 x 193 x 300 |
| Input Power Supply |
IDU |
| Net Weight IDU (kg) |
10 |
| Net ODU Dimensions (Width X Depth X Height) (mm) |
858 x 327 x 536 |
| Net Weight ODU (kg) |
23 |
| Noise Level Outdoor (dB(a)) |
58 |
| Gross IDU Weight (kg) |
11.1 |
| Gross ODU Weight (kg) |
27.2 |
| Suction Tube Size Outer Diameter Inch (mm) |
3/8″ |
| Liquid Tube Size Outer Diameter Inch (mm) |
1/4″ |
| Max Piping Capability Total (metre) |
15 |
| Max Piping Capability Vertical (metre) |
10 |
| Refrigerant Additional Charge Beyond 4M (g/m) |
15 |
| Power Supply to ODU Source(Core/Gauge) |
4C * 1.0sqmm |
| Power Supply to IDU Source(Core/Gauge) |
3C * 1.0sqmm |
| Remote Battery Type |
AAA |

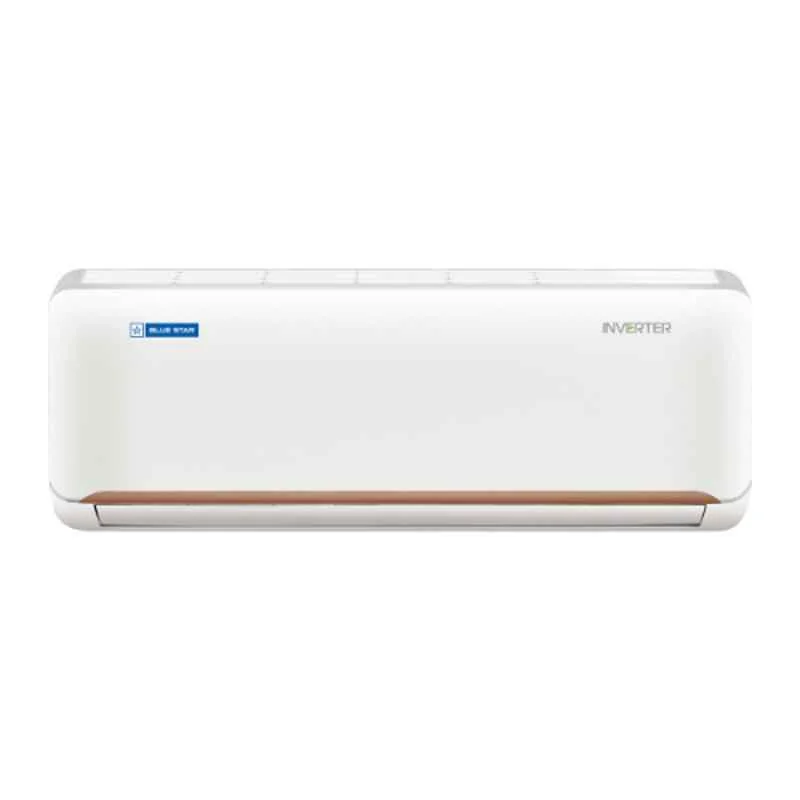

| Product Title |
ID312YNU-Inverter Split AC 1.5 Tr 3 Star |
| Features Refrigerant |
R32 |
| Features Condenser Type |
100% Copper |
| Air Conditioner Technology |
Inverter |
| Country of Origin |
India |
| Address of Manufacturer |
BLUE STAR LIMITED, KASTURI BUILDINGS, MOHAN T ADVANI CHOWK, JAMSHEDJI TATA ROAD, CHURCHGATE, MUMBAI 400 020 |
