Series Name |
YNU |
Nominal Cooling Capacity (tonnage) |
1.5 |
Star Rating |
4 star |
(Rated) Voltage/Frequency/Phase |
230 V / 50Hz / Single |
Cooling Capacity (Watt)(Min~Max) |
5050 ( 1653 ~ 5178 ) |
Cooling Capacity (BTU/hr) |
17231 |
Rated Cooling Capacity (50% Load) (Watt) |
2525 |
Cooling Rated Power Input (Watt) |
1348 |
Cooling Capacity (BTU/hr)(Min~Max) |
17231 ( 5640 ~ 17667 ) |
Cooling Power Input (50% Load) (Watt) |
525 |
ISEER |
4.6 |
Electricity Consumed In 1600 Hours. (Units/Year) |
850.74 |
Nominal Current (Cooling)(Amps) |
6.17 |
Air Flow Volume (Wet CFM) (High / Medium / Low) |
455/348/285 |
Noise Level Indoor (dB(a)) (High/ Medium/ Low) |
46.5/41.1/37.2 |
Moisture Removal (Litres/Hour) |
1.35 |
Compressor Type |
Inverter Rotary |
Acoustic Jacket On Compressor |
Yes |
Refrigerant Quantity(Kg) |
0.62 |
Ambient Temp (Cooling) (degree C) |
52 |
Remote |
LCD Remote with Display |
Night Glow Function On Remote Buttons |
Yes |
Net IDU(Product) Dimension (mm) |
960 x 215 x 320 |
Input Power Supply |
IDU |
Net Weight IDU (kg) |
12 |
Net ODU Dimensions (Width X Depth X Height) (mm) |
888.4 x 367 x 581.5 |
Net Weight ODU (kg) |
28.6 |
Noise Level Outdoor (dB(a)) |
60 |
Gross IDU Weight (kg) |
15 |
Gross ODU Weight (kg) |
33.3 |
Suction Tube Size Outer Diameter Inch (mm) |
1/2″ (12.7mm) |
Liquid Tube Size Outer Diameter Inch (mm) |
1/4″ (6.35mm) |
Max Piping Capability Total (metre) |
15 |
Max Piping Capability Vertical (metre) |
10 |
Refrigerant Additional Charge Beyond 4M (g/m) |
15 |
Power Supply to ODU Source(Core/Gauge) |
4C * 1.5sqmm |
Power Supply to IDU Source(Core/Gauge) |
3C * 1.5sqmm |
Remote Battery Type |
AAA |
Product Title |

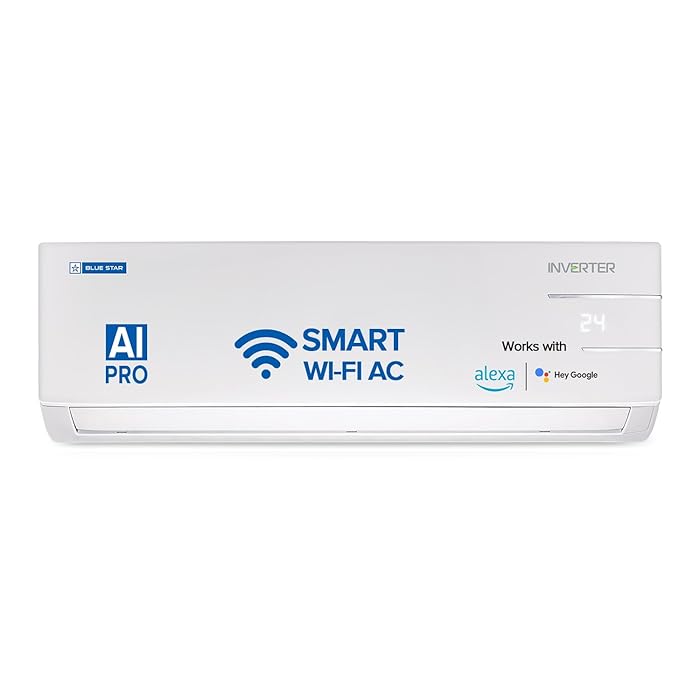

ID418YNU-Inverter Split AC 1.5 Tr 4 Star |
Features Refrigerant |
R32 |
Features Condenser Type |
100% Copper |
Air Conditioner Technology |
Inverter |
Country of Origin |
India |
Address of Manufacturer |
BLUE STAR LIMITED, KASTURI BUILDINGS, MOHAN T ADVANI CHOWK, JAMSHEDJI TATA ROAD, CHURCHGATE, MUMBAI 400 020 |
