| Series Name |
D |
| Nominal Cooling Capacity (tonnage) |
2 |
| Star Rating |
5 star |
| (Rated) Voltage/Frequency/Phase |
230 V / 50Hz / Single |
| Cooling Capacity (Watt)(Min~Max) |
6100 (3055~6358) |
| Cooling Capacity (BTU/hr) |
20813 |
| Rated Cooling Capacity (50% Load) (Watt) |
3050 |
| Cooling Rated Power Input (Watt) |
1555 |
| Cooling Capacity (BTU/hr)(Min~Max) |
20813(10424~21694) |
| Cooling Power Input (50% Load) (Watt) |
555 |
| ISEER |
5.05 |
| Electricity Consumed In 1600 Hours. (Units/Year) |
935.89 |
| Nominal Current (Cooling)(Amps) |
7.1 |
| Air Flow Volume (Wet CFM) (High / Medium / Low) |
850/662/584/510 |
| Noise Level Indoor (dB(a)) (High/ Medium/ Low) |
51.7/47.7/42.6/38.9 |
| Moisture Removal (Liters/Hour) |
1.3 |
| Compressor Type |
Inverter Rotary |
| Acoustic Jacket On Compressor |
Yes |
| Refrigerant Quantity(Kg) |
0.99 |
| Ambient Temp (Cooling) (degree C) |
54 |
| Remote |
LCD Remote with Display |
| Night Glow Function On Remote Buttons |
Yes |
| Net IDU(Product) Dimension (mm) |
1110 x 335 x 215 |
| Input Power Supply |
IDU |
| Net Weight IDU (kg) |
15 |
| Net ODU Dimensions (Width X Depth X Height) (mm) |
968 x 689 x 367 |
| Net Weight ODU (kg) |
40.2 |
| Noise Level Outdoor (dB(a)) |
57 |
| Gross IDU Weight (kg) |
18 |
| Gross ODU Weight (kg) |
46.4 |
| Suction Tube Size Outer Diameter Inch (mm) |
5/8″ (15.88mm) |
| Liquid Tube Size Outer Diameter Inch (mm) |
1/4″ (6.35mm) |
| Max Piping Capability Total (meter) |
15 |
| Max Piping Capability Vertical (meter) |
10 |
| Refrigerant Additional Charge Beyond 4M (g/m) |
15 |
| Power Supply to ODU Source(Core/Gauge) |
4C * 2.5sqmm |
| Power Supply to IDU Source(Core/Gauge) |
3C * 2.5sqmm |
| Remote Battery Type |
AAA |
| Product Title |

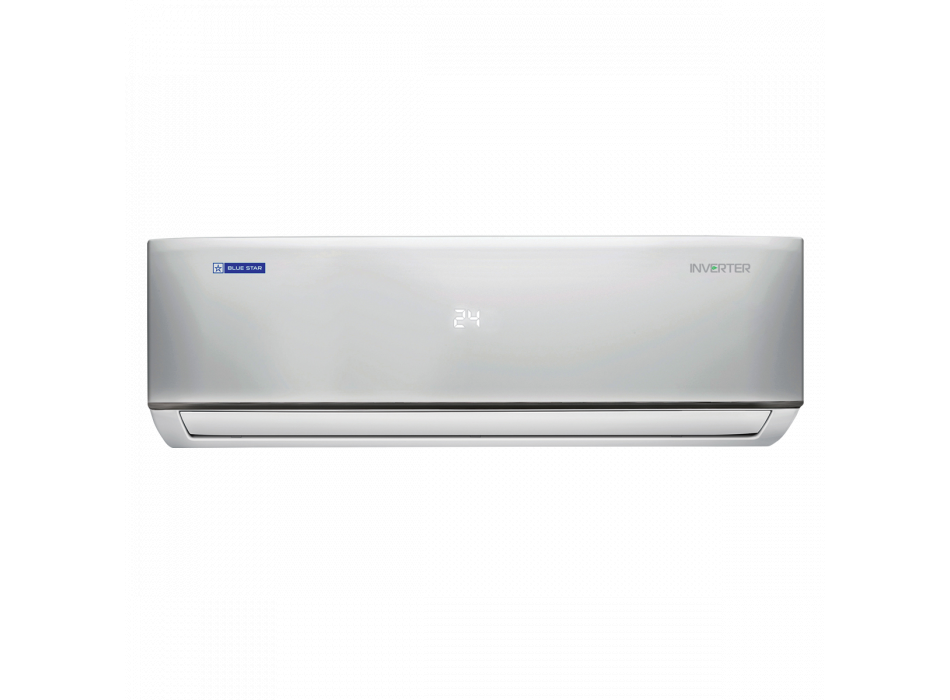

IC524DNUR-Inverter Split AC 2.0 Tr 5 Star |
| Features Refrigerant |
R32 |
| Features Condenser Type |
100% Copper |
| Air Conditioner Technology |
Inverter |
| Country of Origin |
India |
| Address of Manufacturer |
BLUE STAR LIMITED, KASTURI BUILDINGS, MOHAN T ADVANI CHOWK, JAMSHEDJI TATA ROAD, CHURCHGATE, MUMBAI 400 020 |
